Muff couplings, Cromo Stal

Muff coupling, female thread

Grade: 316
Catalog no.: 113

NW	A	B [mm]	L [mm]
6	1/8''	14	17
8	¼''	17	25
10	3/8''	21,3	26
15	½''	26,4	34
20	¾''	31,8	36
25	1''	39,5	43
32	11/4''	48,3	48
40	11/2''	54,5	48
50	2''	66,3	56
65	21/2''	82	66
80	3''	95	71
100	4''	122	83

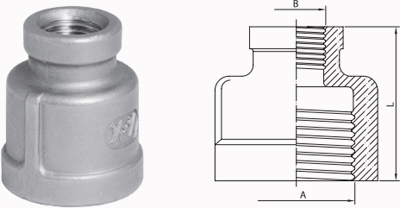

Reduction muff coupling female thread

Grade: 316
Catalog no.: 114

A	B	L [mm]
¼''	1/8''	27
3/8''	1/8''	34
3/8''	¼''	34
½''	¼''	34
½''	3/8''	34
¾''	3/8''	38
¾''	½''	45
1''	3/8''	45
	½''	45
	¾''	50
11/4''	½''	50
	¾''	50
	1''	0
11/2''	¾''	56
	1''	56
	11/4''	56
2''	1''	66
	11/4''	66
	11/2''	66
21/2''	11/4''	70
	11/2''	70
	2''	70
3''	2''	72
3''	21/2''	72
