Round bars

We offer round, square and hexagonal bars in grades: 1.4301, 1.4021, 1.4034, 1.4057, 1.4305, 1.4541, 1.4571, 1.4404.

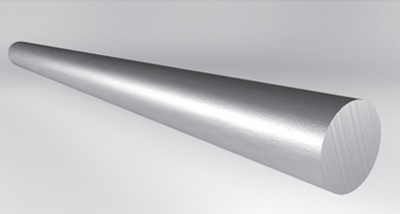

Round bars:

  • cold-drawn with mat or ground surface, manufactured according to DIN 671 standard, tolerance h9 and h10,
  • rolled, manufactured according to DIN 1013 standard, tolerances k11 and k12.

Sold in lengths of 3 to 6 m.


DIAMETER [mm] WEIGHT 1M [kg] DIAMETER [mm] WEIGHT 1M [kg]
2 0,03 35 7,60
3 0,06 40 9,90
4 0,10 45 125,00
5 0,15 50 15,40
6 0,22 55 18,60
7 0,30 60 22,20
8 0,40 65 26,00
9 0,45 70 30,20
10 0,61 75 34,70
11 0,75 80 39,50
12 0,89 85 44,50
13 1,04 90 49,90
14 1,21 95 55,60
15 1,39 100 61,00
16 1,58 105 68,00
17 1,78 110 74,60
18 2,00 115 81,50
19 2,23 120 88,80
20 2,47 125 96,30
21 2,72 130 104
22 2,98 135 112
23 3,26 140 121
24 3,55 145 130
25 3,85 150 139
26 4,17 160 158
27 4,49 170 178
28 4,83 180 200
29 5,19 190 223
30 5,55 200 247

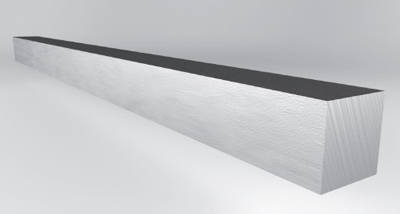

Square bars

a x a [mm] WEIGHT 1M [kg]
5X5 0,20
6X6 0,28
8X8 0,50
10X10 0,79
12X12 1,13
14X14 1,54
15X15 1,77
16X16 2,01
18X18 2,54
20X20 3,14
22X22 3,80
25X25 4,91
30X30 7,07
35X35 9,62
40X40 12,56
45X5 15,90
50X50 19,63
60X60 28,26
70X70 38,50
80X80 50,20
90X90 63,60
100X100 78,50

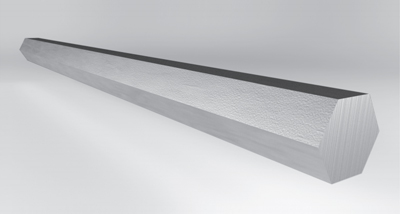

Hexagonal bars

DIAGONAL [mm] WEIGHT 1M [kg]
10 0,68
13 1,15
14 1,36
17 1,97
19 2,45
22 3,29
24 3,92
27 4,96
30 6,12
32 6,96
36 8,81
41 11,43
46 14,39
50 17,00
55 20,57
60 24,48
65 28,72
